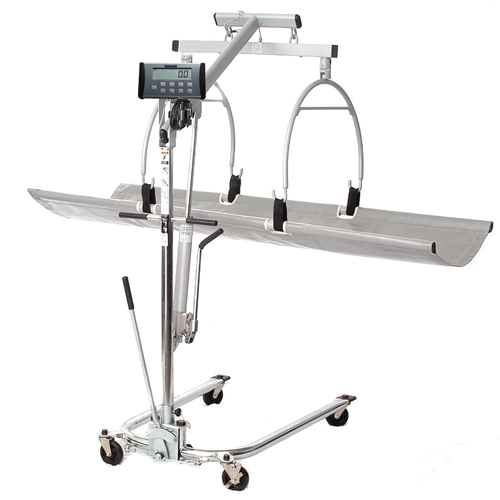

Digital In-Bed Stretcher Scale (400 lbs. Weight Capacity)


$ 3,270.00 $ 4,495.00

The Digital In-Bed / Stretcher Scale provides healthcare professionals a method for weighing bedridden patients safely and comfortably. This durable scale features a strong steel construction with a sturdy stretcher to accommodate patients weighing up to 400 lbs. This scale also has four (4) wheels for easy maneuverability (2 of which lock for safety) and a ¾” LCD screen for easy operation, as well as a number of different built-in functions, including the ability to interface with a computer, EMR software, printer or other electronic devices via various Health o Meter Professional Connectivity solutions.

Digital In-Bed / Stretcher Scale Features:

  • Functions: LB/KG Conversion, LB/KG lock out, BMI Calculator, Zero Out/Tare, Hold/Release, Reweigh, Auto Zero, Auto Off

  • EMR connectivity

  • Durable steel structure

  • Large stretcher

  • 4 wheel construction, 2 lock for safety

  • Assembly required

  • Sold by: the each

Digital In-Bed / Stretcher Scale Specifications:

  • Capacity:  400 lbs/181 kg

  • Resolution:  0.2 lbs/0.1 kg

  • Display:  ¾ " digital LCD

  • Platform Size:  70 3/8” (w) x 30 3/8” (d)

  • Power Source:  120V adapter included, 6 AA batteries (not included)

  • Connectivity:  USB

  • Total weight:  142 lbs.

  • Warranty:  2 year manufacturer’s warranty

Instructions for Use:

EMR Connectivity:

In order to ensure the reliability and accuracy of recorded weight measurements, this scale is designed to be connected to electronic devices (via a built in USB port) for the direct transfer of height, weight, and BMI information. For more information on connecting this scale to electronic devices, please contact Health o meter Professional Scales Technical Support, which is available during normal business hours by calling 1-800-638-3722.


To assemble this scale, follow all of the instructions located within the product manual.  It is recommended that 2 people work together on the assembly. The tools required for the assembly of this scale include:  Phillips head screwdriver (not included), flat head screwdriver (not included), adjustable wrenches (not included), and allen wrenches (included).


Getting the patient on the stretcher:

  • Note: Never move the scale while a patient is on the stretcher and never leave the patient unattended while on the scale

Start by placing the stretcher on the surface you wish to use to transfer the patient onto the stretcher (such as a bed or another stable flat surface). Then follow the steps below:

  1. Place the patient on the stretcher so that their center mass is as close to the center of the stretcher as possible

  2. Wheel the lifter scale over to the stretcher and position the boom hoops so they are about 5-10 inches (12-25 cm) from the patient’s body

  3. Connect the loops on the stretcher to the hooks at the end of each set of loops, making sure the loops hang properly and equally from the hooks

  4. Tighten the hydraulic control valve knob (which is located on the pump near the handle) by turning it clockwise

  5. Widen the lifter base (using the base adjustment lever) to that the base is spread out as much as possible in order to optimize the stability of the scale while lifting the patient

  6. Using the hydraulic pump handle, slowly lift the stretcher with the patient until the stretcher is hanging from the loops and isn’t contacting anything under or around it **Leave the  wheels on the lifter base unlocked so the base can move and adjust itself for better balance, if needed

Weighing the patient:

  1. Make sure there is nothing on the scale other than the patient

  2. Turn the scale on using the ON/OFF button

  3. The scale will automatically begin determining the weight of the patient. Once the scale has locked onto the patient’s weight (which could take several seconds depending on how much the patient is moving), the scale will display the weight information on its screen

  4. For improved accuracy and reliability it is recommended that a second weight reading be taken while the patient is still on the scale; simply press the REWEIGH button

  5. To get the weight reading information to remain on the screen, press the HOLD/RELEASE button. Pressing the HOLD/RELEASE button a second time will release the readings from the screen

  6. Once the readings have been recorded, slowly turn the hydraulic pump control valve knob counterclockwise to lower the stretcher and patient back down to the stable surface that was originally used to lift them while carefully guiding the patient down safely.

  7. Once the patient is resting on the surface or bed, release the hanging hoops from the stretcher hoops

  8. Turn the scale off by pressing the ON/OFF button

Manufacturer: Health o Meter Professional

Product number: 2000KL

UPC: 892076002466


Choose comfort, accuracy, and usability by choosing this digital scale for weighing bedridden patients. Order yours today by placing an order using our conveniently easy to use website or calling us at 1-888-687-4334 to speak with one of our friendly and experienced Medical Supply Specialists and placing an order by phone.
