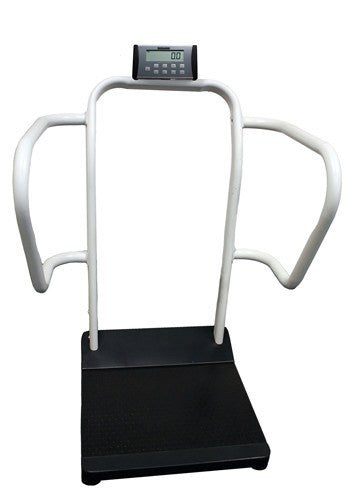

Digital Bariatric Platform Scale, BMI Calculator & EMR Connectivity

HOM2101KL

$ 2,185.00 $ 2,599.00

The Digital Platform Scale is designed for ease of use, patient comfort, and convenience while providing accurate and reliable weight measurements. This scale has a low-profile platform that is easy for patients to step onto and features wrap-around live handrails for increased patient comfort and stability. This platform scale also has an easy to read LCD display on a 180° swivel to enhance patient privacy and enable the operator to view it from either side of the scale. This platform scale also has the capability of being connected with electronic devices, such as a computer or printer, which helps reduce recording errors for more accurate electronic medical records.



Digital Platform Scale Features:

  1. Functions: LB / KG Conversion, LB / KG Lock Out, Body Mass Index (BMI), Zero Out / Tare, Hold / Release, Reweigh, Auto Zero, Auto Off
  2. High capacity for bariatric use
  3. “Live” handrails for patient stability
  4. 180° swivel display
  5. Low profile platform
  6. Factory calibrated
  7. Assembly required
  8. Sold by: the each



Distinguishing Benefits:

  1. Unlike other more traditional scales where the user had to stand still and couldn’t hang onto anything for stability in order to get accurate weight measurements, this innovative stand-on scale uses motion-sensing weighing technology to determine the actual weight of a moving patient
  2. Offers enhanced safety (especially in comparison to other more traditional scales) with wrap-around handrails that provides patients with a sturdy rail they can hold onto for stability while caregivers obtain their weight
  3. Enables patients to be weighed while still using the comfort and assistance of their wheelchair (or other objects), meaning there is less disruption to the patient. The tare function of this unit can automatically subtract the weight of objects to determine the actual weight of the patient
  4. Features a convenient swivel display head that can rotate up to 180°, which provides patient privacy and enables operators to easily view and use the control panel from either side of the scale
  5. Provides users with the option of using the AC power adapter or 6 AA batteries to power the unit, meaning this scale can still be used in places where there isn’t convenient access to a power outlet



Specifications:

  1. Capacity: 1,000 lbs. / 454 kg
  2. Resolution: 0.2 lbs. / 0.1 kg
  3. Platform Size: 26” (w) x 22” (d) x 2 3/8” (h) / 660 mm (w) x 559 mm (d) x 60 mm (h)
  4. Display: 3/4” LCD, 180° swivel
  5. Wheels: 2
  6. Power Source: 110-240V adapter included, 6 AA batteries (not included)
  7. Connectivity: USB
  8. 2 Year limited manufacturer’s warranty
  9. Weight: 78 lbs.



Instructions for Use:

**Please note that these instructions are not intended to replace or substitute the usage instructions accompanying this unit. For optimal results, please follow all instructions located within the product manual for this product. **


Assembly:

This scale requires assembling prior to use. Please follow all assembly instructions located in the product manual accompanying this unit. The tools required for the assembly are a Phillips head screwdriver (not included) and Allen wrenches (included). For best results, it is recommended that the assembly of this unit be performed by two individuals.


Auto Tare Function:

  1. Ensure there is nothing on the scale and then press the ON/OFF button to turn the unit on

  2. Wait until the display screen reads “0.0” LBS or “0.0” KG

  3. Place the object on the scale and wait for the object’s weight to be displayed on the screen

  4. Press the TARE button to zero out the scale. The word “TARE” will appear in the bottom of the display to indicate there is a tare value for the object

  5. Remove the object from the scale (the display will show the negative weight of the object)

  6. Place the patient and the object on the scale together (tare weight of the object will automatically be deducted from the total weight of the patient and object)

  7. Patient’s actual weight will appear on the display screen


Semi-Manual Tear Function:

  1. Ensure there is nothing on the scale

  2. Press the ON/OFF button to turn the unit on

  3. Wait until the display screen reads “0.0” LBS or “0.0” KG  and “Zero”

  4. Press and hold down the TARE button for 3 to 5 seconds (the word “TARE” will appear at the bottom of the display and the user will be prompted to enter a tare value)

  5. Use the ►and ▲buttons on the keypad to enter the weight of the object and then press the ENTER button (the value entered will be displayed as a negative value)

  6. Place the patient and the object on the scale together (the tare weight of the object will automatically be deducted from the total weight of the patient and object)

  7. Patient’s actual weight will appear on the display screen


Weighing a Patient:

  1. Ensure there is nothing on the scale

  2. Press the ON/OFF button to turn the unit on

  3. Wait until the display screen reads “0.0” LBS or “0.0” KG  and “Zero”

  4. Ask the patient to step onto the scale

  5. The patient’s weight will automatically be displayed on the LCD screen

  6. Once a weight has been displayed, it is highly recommended that a second weighing be performed by pressing the REWEIGH button

  7. Once the weight measurement has been recorded, have the patient step off the scale

  8. Press the ON/OFF button to turn the scale off


EMR Connectivity:

  • In order to ensure the reliability and accuracy of recorded weight measurements, this scale is designed to be connected to electronic devices (via a built in USB port) for the direct transfer of height, weight, and BMI information. For more information on connecting this scale to electronic devices, please contact Health o meter Professional Scales Technical Support, which is available during normal business hours by calling 1-800-638-3722.


Manufacturer: Health o meter Professional

Product number: 2101KL

UPC: 892076002282



Maintain accuracy while enhancing patient comfort by using this user-friendly platform scale, which has a 1000 lbs. weight capacity to safely support bariatric patients. Purchase yours today by placing an order using our conveniently easy to use website or calling us at 1-888-687-4334 to speak with one of our helpful medical supply specialists and place an order by phone.
