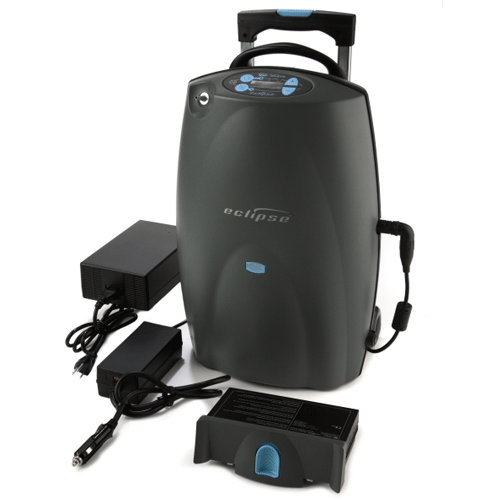

Eclipse 5 Transportable Oxygen Concentrator with Accessories


$ 3,300.00 $ 4,979.95

The Eclipse 5 Transportable Oxygen Concentrator delivers enhanced performance and revolutionary benefits, along with innovative accessories. This concentrator is excellent for both travelling and home oxygen needs due to its small, lightweight, and low maintenance design. The Eclipse features innovative technology that provides both continuous flow and pulse dose therapy in one cost-efficient unit. It’s the all-in-one solution for your 24/7 oxygenation needs.

Eclipse 5 Transportable Oxygen Concentrator Features:

    • - Excellent for both home use and travelling
    • - Small and lightweight
    • - Low maintenance
    • - Continuous flow and dose therapy
    • - Integral safety alarms and alerts
    • - Easy to use
    • - Compact and obtrusive
    • - Quiet and easy to maneuver
    • - FAA approved


      1. Dimensions:  19.3” H x 12.3” W x 7.1” H
      2. Weight:  Eclipse 15 lbs
      3. Continuous flow settings:  0.5 t0 3.0 LPM (0.5 liter increments)
      4. Pulse dose settings:  Settings 1-6 (0.5 increments) up to 96mL bolus size; Settings 7-9 (1.0 increment) up to 192mL bolus size
      5. O2 concentration:  90% ± 3% @ sea level
      6. O2 output pressure:  5.0 psig (34.5 kPa)
      7. Sound level:  48 dB(A) at 3.0 LPM Continuous Flow Mode; 40 dB(A) at 3.0 Pulse Dose setting
      8. Power specifications: AC Operation 100-240 VAC, 50-60 Hz; DC Operation 12 V nominal
      9. Power cartridge:  Quantity (2) 97.5 W-Hr battery packs each containing 7.92 gm of lithium content
      10. Power consumption: 52 watts at 1.0 LPM CF, 145 watts at 3.0 LPM, 45 watts at 1.0 pulse dose, 95 watts at 6.0 pulse dose
      11. Nominal power cartridge recharge time:  1.8 to 5.0 hrs, dependent upon the flow recharge time to achieve 80% capacity
      12. Back-up alarm power:  9 volt battery
      13. O2 concentration indicator lights:  Green Light=Normal, Yellow Light=Warning or Caution, Red Flashing Light=Abnormal
      14. Three-year manufacturer’s warranty on parts
      15. One-year manufacturer’s warranty on the internal battery and AirBelt


      The Eclipse 5 Transportable Oxygen Concentrator is easy to use and exteremly convenient for patients who live at home and need supplemental oxygen. The unit has simple-to-use controls and an accurate easy-to-read flow indicator. Plus, its compact and sleek design makes it a great addition to any home. The device is also very quiet and easy to maneuver, while offering a variety of recharging options for your convenience.
