A rubber dam punch is a specialized dental instrument for creating precise holes in a rubber dam sheet (latex or nitrile) to isolate teeth during restorative procedures. An IV-type (or “Ivory” system) punch is a common style made of stainless steel with a spring-loaded handle and a rotating punch wheel. This design allows the clinician to select from multiple hole diameters—typically five or six sizes (about 0.5 mm up to ~2.0 mm)—by rotating a disc beneath the punch head. The punch’s sharp stylus and serrated punch plate cut tear-resistant holes: when the handles are squeezed, the stylus meets the metal plate to shear the dam cleanly .
Features and Functionality

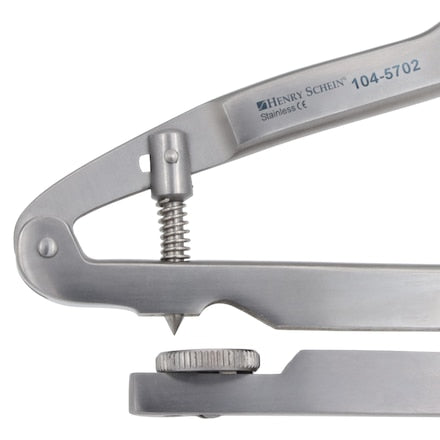

IV-type punch models offer a range of hole sizes in one instrument. The rotating disc beneath the punch tip contains several apertures of different diameters. By rotating this disc to the desired aperture, the dentist can punch a hole appropriate for each tooth’s size. The build is typically high-quality stainless steel, and some designs use a floating plunger which strikes all edges of the cutting disc evenly. This ensures the hole is cut out completely without leaving flaps or tags. As one dental supply description notes, an Ivory punch “is used to make clean, tear-resistant holes in even the thickest rubber dam,” with a “precision instrument” construction and a disc that “provides the correct opening for the smallest anterior tooth to the largest molar”.
When the punch is applied, its pointed stylus drives through the stretched dam material and meets a perforated, serrated plate on the other side. The serrated edges shear the rubber so the punched hole remains smooth. It is important to keep the punch sharp: a dull punch will produce ragged holes that can catch and tear the dam during placement. After use, any leftover bits of dam should be cleared from the punch mechanism so subsequent punches stay clean.
Hole Sizing and Technique
Choosing the correct hole size is critical for a snug fit around each tooth. In practice, the practitioner first determines which teeth will be isolated (including the “anchor” clamp tooth) and aligns the dam sheet accordingly. The punch is then used sequentially to perforate holes at the appropriate positions. As a clinical guide explains, the punch plate “allows holes of five or six different sizes,” with larger holes for posterior teeth and smaller holes for anterior teeth. In other words, one typically uses the largest diameter for a molar (especially the clamped “anchor” molar) and progressively smaller diameters toward the front teeth.
For example, a common sizing scheme (as given by a dental textbook) lists roughly the following hole diameters for an Ainsworth-style punch:
-
Lower incisors: ~0.029″ (≈0.75 mm) – smallest holes
-
Upper incisors: ~0.041″ (≈1.04 mm)
-
Canines/Premolars: ~0.052″ (≈1.32 mm)
-
Molars: ~0.064″ (≈1.62 mm)
-
Anchor molar (clamp tooth): ~0.076″ (≈1.93 mm)
These correspond roughly to the punch’s hole settings #1 (smallest) through #5 (largest). In use, the dentist aligns the dam sheet (often using a rubber-dam stamp or template) so the punched holes will match the planned tooth positions. Then the levered handles of the IV punch are squeezed to perforate the dam for each tooth, typically starting with the clamp/anchor tooth and then the adjacent teeth.
Best Practices and Maintenance
To achieve reliable isolation, the punch must be sharp and operated correctly. Always remove any tiny pieces of cut rubber from the punch after use, as any debris can prevent a clean cut or harbor bacteria during sterilization. A properly functioning IV-type punch produces clean, “tear-resistant” holes that allow the rubber dam to stretch snugly around each tooth without tearing. If the dam tears during placement, reassess your hole sizing and punch edges – sometimes a slightly smaller hole or a sharpened punch is needed.
By following these guidelines – selecting the right hole size, punching with sharp edges, and cleaning the instrument – an IV (Ivory) type rubber dam punch ensures efficient, leak-free isolation of teeth during dental treatments. Proper hole placement and a snug fit around each tooth are essential for successful rubber dam isolation and a clear, contaminant-free working field.
