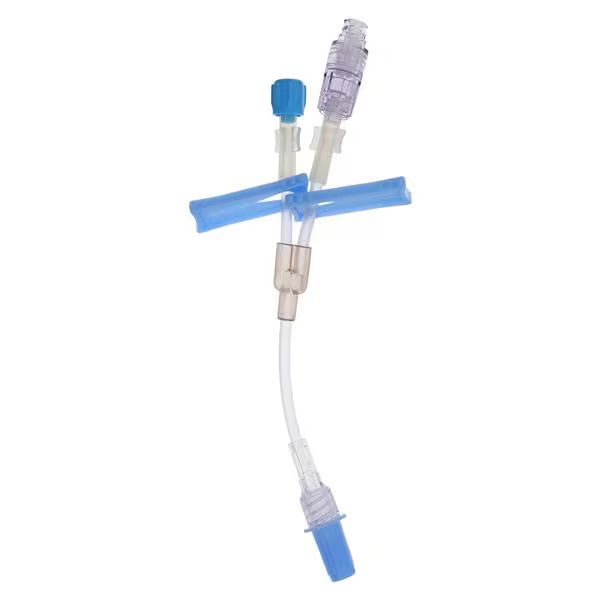

Clearlink Y-Type IV Catheter Extension Set, 2 Slide Clamps, 6.5" length

The Clearlink Y-Type IV Catheter Extension Set by Baxter Healthcare 2N8377 is expertly designed for efficient, safe, and flexible intravenous therapy. Featuring a sterile 6.5-inch standard bore tubing, two secure slide clamps, and a Clearlink Luer-activated valve, this disposable set enhances infection control and workflow efficiency. Its innovative Y-type configuration and rotating male luer lock adapter ensure precise connections and multi-site access for infusion, medication delivery, and sampling—all with the trusted quality of Baxter.

What is it Used For?

This Baxter Clearlink Y-Type Extension Set is used for:

• Extension of IV catheters: Enhancing access and flexibility in IV tubing, especially in difficult-to-reach areas
• Dual-site infusion: Allowing simultaneous or alternating administration of fluids or medications through Y-type injection ports
• Medication injection or sampling: Via needleless Clearlink luer-activated valves, reducing infection risk and needlestick injuries
• Efficient fluid management: For acute, critical, or general care in hospital and clinical settings

Details & Features

• Product Number: 2N8377
• Y-Type Configuration: Dual access points optimize multi-infusion capability
• Clearlink Luer-Activated Valve: Enables safe, needle-free injections and sampling, promoting infection prevention
• Priming Volume: 1.2 mL—account for precise medication dosing and minimal fluid waste
• Tube Length: 6.5 inches (standard bore)—ideal for patient comfort and secure placement
• Clamps: 2 easy-to-use slide clamps for safe fluid control and secure line management
• Connector: Male luer lock adapter with retractable, rotating collar for leak-resistant, secure connection
• Color: Transparent for easy visualization of flow and air bubbles
• Latex-Free: Not made with natural rubber latex—reduced risk for allergic reactions
• Sterile, Single-Use: Strict infection control—disposable after one use
• Retractable Collar: Added safety and ease at connection point

Directions

1. Prepare: Inspect packaging for damage or contamination before opening. Ensure the expiration date is valid.
2. Connection: Attach the male luer lock adapter with rotating collar securely to the IV catheter or primary line. Ensure the collar is fully engaged.
3. Priming: Prime the set by opening slide clamps and flushing IV solution through the tubing until all air is removed (1.2 mL priming volume).
4. Y-Port Access: Utilize Clearlink luer-activated Y-ports for needleless injection or sampling. Disinfect each port before access, using aseptic technique.
5. Clamping: Use slide clamps to control or temporarily halt fluid flow as needed during medication administration or when disconnecting.
6. Disposal: Dispose after single use according to facility protocol.

Warnings

• Single-use only: Do not reuse. Reuse increases risk of infection, biofilm formation, or device failure.
• Sterility required: Use only if packaging is intact and undamaged. Discard if sterility is compromised.
• Priming volume: Always account for the 1.2 mL priming volume in medication calculations to avoid dosing errors.
• Needleless ports: Use only compatible luer lock syringes and IV equipment for injection or withdrawal.
• Proper technique: Always use aseptic technique during installation, access, and disconnection to minimize infection risk.
• Latex-free: Although latex is not used, always confirm patient allergies before IV therapy.
• Storage: Store in a cool, dry place and do not use past the expiration date.

Choose the Baxter Clearlink Y-Type IV Catheter Extension Set (2N8377) for reliable, safe, and flexible IV access in any critical or general care setting. Trust Baxter Healthcare’s innovation for patient-focused, infection-resistant IV therapy.

Order today for dependable performance and patient safety in IV infusions and medication administration!
