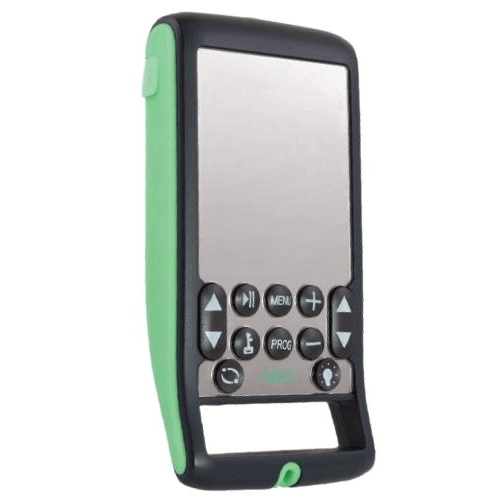

Ultima-Neo Tens Advanced Muscle Stimulator with Rechargeable Battery

Designed for ease of use and functionality, the Ultima Neo Advanced Multi-Mode Stimulator is a sophisticated multi-mode electrotherapy stimulator that combines 4 therapeutic treatments (TENS,EMS, Interferential, and Micro-current) into one handy device for superior pain relief and rehabilitation. The included body parts diagram takes the guess work out of electrode placement and the ultra-slim and lightweight rechargeable battery has an extra long runtime to eliminate the need to stay tethered to a wall socket during treatments.

Features:

1. Provides electrotherapy stimulation for pain relief and rehabilitation
2. Helps stimulate the bodies natural healing abilities
3. Choose between TENS, EMS, Interferential, and Micro-current modes
4. Produces balanced sine waveforms
5. Includes body parts diagrams
6. Dual channels
7. Has an onboard timer
8. Adjustable control of the treatment width
9. Sleek and stylish black and lime green design
10. Ultra slim and lightweight unit weighing only 2 lbs.
11. Powered by a rechargeable li-ion battery
12. One year manufacturer’s warranty against all mechanical defects

Benefits:

1. This unit provides body part diagrams to help illustrate where the electrodes should be placed for optimal treatment outcomes
2. Users aren’t restricted to only being able to use this unit near a wall socket
3. Batteryprovides a long use time before needing to be recharged
4. Uses universal lead wires
5. Comes with a charging system

Ideal Uses:

1. To help reduce or alleviate pain
2. For the treatment of neurological conditions and nerve pain
3. To help relax tight muscles and reduce muscle spasms
4. Promoting the bodies natural healing abilities
5. For rehabilitation
6. For improving blood flow and circulation
7. To help reduce swelling and inflammation
8. Especially great for those suffering from chronic pain

Why choose a unit with an inferential treatment mode?

1. The interferential mode produce a sine wave, which is a balanced waveform that helps reduce pain levels more efficiently and more effectively
2. The inferential treatment mode produces balanced sine waveforms that are able to penetrate deeper into the tissues and reach the nerves with less resistance than the standard TENS andEMSmodes
3. The inferential mode is able to stimulate larger tissue fibers with a broader coverage area and are able to block the transmission of pain signals while deeply penetrating tissues to stimulating the nerve fibers to improve circulation

NEO TENS Mode Specifications:

1. Ch1 intensity: Up/down 20 steps of 5mA, 5.0 to 100mA into 1K‡(Peak value at pulse width=200‹s)
2. Ch2 intensity: Up/down 20 steps of 5mA, 5.0 to 100mA into 1K‡(Peak value at pulse width=200‹s)
3. Frequency (Hz): From 1Hz to 150Hz in steps of 1Hz
4. Pulse width(uS): 50,60,70,80,90,100,110,120,130,140,150,160,170,180,190,200,210,220,230,240,250,300
5. Waveform: Symmetrical bi-phasic rectangular Asymmetrical bi-phasic rectangular Mono-phasic
6. Treatment timer: Continuous 15, 30, 45, 60, and 90 min treatments


NEO EMS Mode Specifications:

1. Ch1 intensity: Up/down 20 steps of 5mA, 5.0 to 100mA into 1K‡(Peak value at pulse width=200‹s)
2. Ch2 intensity: Up/down 20 steps of 5mA, 5.0 to 100mA into 1K‡(Peak value at pulse width=200‹s)
3. Frequency (Hz): From 1Hz to 110Hz in steps of 1Hz
4. Pulse width(uS): 50-400‹s in steps of 50‹s
5. Waveform: Symmetrical bi-phasic rectangular Alternated bi-phasic rectangular
6. Ramp Time: 0-5s in steps of 1s
7. On time: 1-60s in steps of 1s
8. Off time: 0-60s in steps of 1s
9. Treatment timer: Continuous 10, 20, 30, 45, 60, and 90 min treatments

NEO MICRO Mode Specifications:

1. Ch1 intensity: Micro 1: (Neuro A), From 2.0mA to 72mA into 500‡ (Peak value at pulse width=250‹s) in steps of 2.0mA Micro 2: (Neuro B), From 0.1mA to 10mA into 1k‡ (Peak value at pulse width=2.1ms) in steps of 0.1mA
2. Ch2 intensity: Micro 1: (Neuro A), From 2.0mA to 72mA into 500‡ (Peak value at pulse width=250‹s) in steps of 2.0mA Micro 2: (Neuro B), From 0.1mA to 10mA into 1k‡ (Peak value at pulse width=2.1ms) in steps of 0.1mA)
3. Frequency (Hz): Fixed 94Hz
4. Pulse width (uS): Micro 1: Fixed 250‹s Micro 2: Fixed 2100‹s
5. Waveform: Asymmetrical bi-phasic rectangular Monophasic Positive Rectangular
6. Treatment timer: Continuous 10, 20, 30, 45, 60, and 90 min treatments

NEO IFT Mode Specifications:

1. Ch1 intensity: Up/down 30 steps of 60mA, from 2.0mA to 60mA into 500‡
2. Ch2 intensity: Up/down 30 steps of 60mA, from 2.0mA to 60mA into 500‡
3. Frequency (Hz): From 4004Hz to 4160Hz in steps of 4Hz
4. Pulse width(uS): 125 Microseconds for each phase
5. Waveform: Symmetrical balanced Sine wave
6. Treatment timer: Continuous 10, 20, 30, 45, 60, and 90 min treatments

Unit Includes:

1. Device
2. Batteries
3. Charging system
4. Lead wires
5. One 4 pack of electrodes
6. Carrying case
7. Users manual


Manufacturer: Pain Management Technologies

Product number:  Uneo

Why buy 4 separate devices when this one easy-to-use unit can be used for TENS therapy,EMStherapy, Interferential therapy, and Micro-current therapy? Less pain and improved mobility leads to an improved quality of life. Order your Ultima Neo Advanced Multi-Mode Stimulator today! Place an order online using our conveniently easy to use website or call us at 1-888-687-4334 to place an order by phone and speak with one of our friendly and experienced Medical Supply Specialists.
