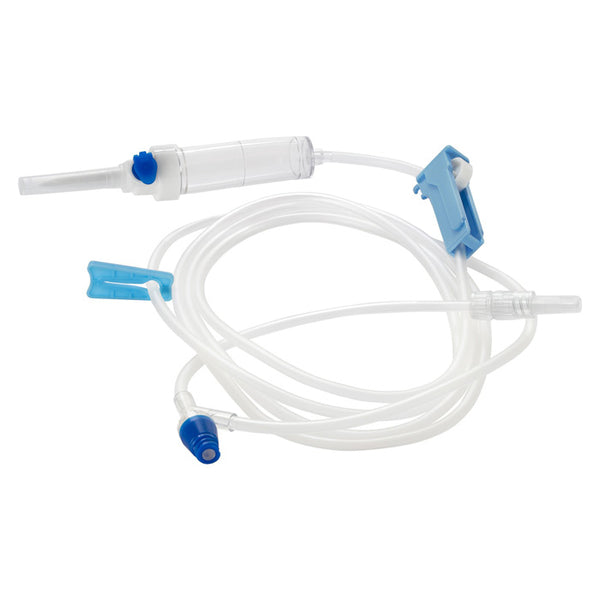

An IV administration set, also known as an IV tubing or IV infusion set, is a medical device used to deliver intravenous (IV) fluids, medications, or blood products from a fluid bag or bottle to a patient's bloodstream. The "gravity" refers to the flow rate at which the fluid is intended to be delivered through the tubing, typically measured in drops per minute. The "20 drops" refers to the size of the drops, which can vary slightly based on the set. The "1 port" refers to a single access port on the set, which allows the healthcare provider to connect the tubing to the fluid source and to the patient's IV line. The "75 inch tubing" refers to the length of tubing, typically measured from the port to the clamp, before connectors and the needle or catheter for insertion are added. This length can also vary based on specific needs and brands.
Features:
- IV (Intravenous) Administration Sets.
- Gravity sets used to connect an IV solution bag to a patient.
One needle-free connector allowing for the infusion of medication/Rx into the solution.
- Male luer lock connection.
- Designed with slide and roller clamps to control flow rate.
- Provides a drip rate of 20 drops/mL.
- Air-vented spike with cap0
- Includes standard-bore, 75-inch tubing.
- Individually wrapped in sterile, peel-to-open packaging for convenient, one-time use.
- Not made with natural rubber latex or DEHP.
- Packaged: 1 Per Pack, 50 Packs Per Box.
Specifications:
Manufacturer #MS921NF
Brand: MedStream
Administration Method: Gravity
Application: Primary IV Administration Set
Back Check Valve: Without Back Check Valve
Connection Type: Male Luer Lock Connector
DEHP Indicator: DEHP-Free Tubing
Drip Rate: 20 Drops / mL Drip Rate
Filter Without Filter
Flow Control Type: Roller Clamp / Slide Clamp
Flow Regulator: Without Flow Regulator
Injection Port Type Grouping: Needle-Free Port
Number of Ports: 1 Port
Port Type: Needle-Free Y-Port
Priming Volume: 23.6 mL Priming Volume
Spike Type: Vented Spike
Sterility: Sterile
Tubing Length: 75 Inch Tubing
Tubing Length Range: 73 to 96 Inches
Tubing Type: Standard Bore Tubing
