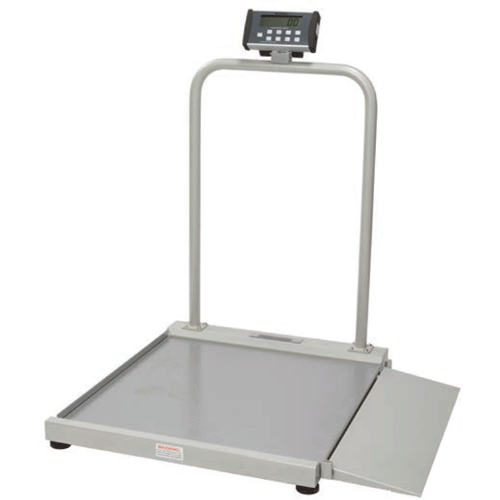

The Digital Wheelchair Ramp Scale is a reliable and convenient scale used to obtain accurate weight measurements. With a 1000 lbs weight capacity, this scale has the capability of accommodating bariatric patients and wheelchair bound individuals, without the inconvenience of needing to get them out of their chair for the weighing process. This scale is also user-friendly, with a 180° swivel display making the digital LCD screen easy to read from either side of the scale.
Digital Wheelchair Ramp Scale Features:
- ♦Functions: LB / KG Conversion, LB /KG Lock Out, Body Mass Index (BMI), Zero Out / Tare, Hold / Release, Reweigh, Auto Zero, Auto Off
- ♦EMR (electronic medical records) connectivity via USB
- ♦Versatile usage
- ♦180° swivel display
- ♦2 wheels for portability
- ♦Factory calibrated
- ♦Accommodates wheelchairs and bariatric patients
- ♦Sold by: the each
Reasons to choose this scale:
- ♦Enables patients to be weighed while still using the comfort and assistance of their wheelchair walker, etc., meaning there is less disruption and an easier weighing process for both the patient and operator. The tare function of this unit will automatically subtract the weight of the wheelchair to determine the actual weight of the patient
- ♦The extra wide platform and ramp comfortably accommodates wheelchairs, walkers and/or bariatric patients
- ♦Eliminates the hardships more traditional scales caused for wheelchair bound individuals, creating a more comfortable weighing experience
Digital Wheelchair Ramp Scale Specifications:
- ♦Capacity: 1000 lbs. / 454 kg
- ♦Resolution: 0.2 lbs. / 0.1 kg
- ♦Platform Size: 29 3/8” (w) x 28 ¼” (d) x 2 3/8” (h)/746mm (w) x 718mm (d) x 60mm (h)
- ♦Ramp Size: 28” (w) x 97⁄8” (d) / 714 mm (w) x 248 mm (d)
- ♦Display: 3/4" LCD, 180° Swivel
- ♦Wheels: (2) Wheels for ease of movement
- ♦Power Source: 110-240V adapter included, 6 AA batteries (not included)
- ♦Connectivity: USB
- ♦Warranty: 2 Year limited manufacturer’s warranty
- ♦Weight: 82.25 lbs.
Instructions for Use:
**Please note: These instructions are not intended to substitute the usage instructions accompanying this unit. For best results please follow all instructions located within the product manual. **
Auto Tare Function:
-
Make sure there isn’t anything on the scale
-
Turn the unit on by pressing the ON/OFF button once
-
Wait until the display screen reads “0.0” LBS or “0.0” KG
-
Place the wheelchair on the scale and wait for the weight to be displayed
-
Press the TARE button to zero out the scale. The word “TARE” will appear on the display
-
Remove the wheelchair from the scale (the display will show the negative weight of the object)
-
Place the patient and the wheelchair on the scale together (tare weight of the object will automatically be deducted from the total weight of the patient and the wheelchair)
-
Patient’s actual weight will appear on the display screen
Semi-Manual Tear Function:
-
Make sure there isn’t anything on the scale
-
Turn the unit on by pressing the ON/OFF button once
-
Wait until the display screen reads “0.0” LBS or “0.0” KG
-
Press and hold down the TARE button for 3 to 5 seconds (the word “TARE” will appear at the bottom of the display and the user will be prompted to enter a tare value)
-
Use the ►and ▲buttons on the keypad to enter the weight of the wheelchair and then press the ENTER button (the value entered will be displayed as a negative value)
-
Place the patient and the wheelchair on the scale together (the tare weight of the wheelchair will automatically be deducted from the total weight of the patient and the wheelchair)
-
Patient’s actual weight will appear on the display screen
Weighing a Patient:
-
Make sure there isn’t anything on the scale
-
Turn the unit on by pressing the ON/OFF button once
-
Wait until the display screen reads “0.0” LBS or “0.0” KG
-
Tare-out the weight of the wheelchair (by following the steps listed above)
-
Wheel the patient (in the wheelchair) onto the scale (the patient’s weight will automatically be displayed on the LCD screen)
-
Once a weight has been displayed, it is highly recommended that a second weighing be performed by pressing the REWEIGH button
-
Once the weight measurement has been recorded, carefully wheel the patient off the scale
-
Press the ON/OFF button once to turn the scale off
Manufacturer: Health o meter Professional
Product number: 2500KL
UPC: 892076002275
Enhance the reliability of data recording by using a digital scale with USB connection capabilities to transmit readings for more accurate electronic medical records. Browse through our conveniently easy to use website and place your order today. Should you have any questions or if would like assistance, please call 1-888-687-4334 and one of our helpful medical supply specialists can provide assistance.
